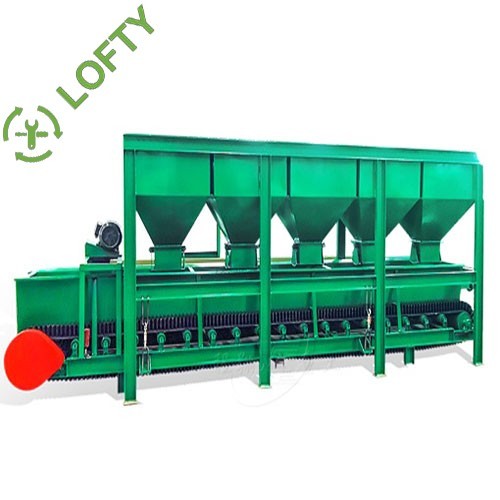

Static Automatic Batching System

Product Introduction:

Static automatic batching system is an automatic batching device that can be used with BB fertilizer equipment, organic fertilizer equipment and compound fertilizer equipment. It can complete automatic proportioning of materials according to customer needs. Static automatic batching machine is used to weigh, distribute and mix multiple raw materials individually, replace manual weighing or volumetric measurement. Static automatic batching machine adopt microcomputer control, electronic monitoring and digital prompts. It has good control functions and easy to operate. It is guarantee of accurate fertilizer product content. The static automatic batching machine has characteristics of high measurement accuracy, fast distribution efficiency, and high degree of automation. It is one of the main parts of the complete set of fertilizer production equipment.

Product Feature:

※  It adopts integrated direct-connected special belt scale reduction motor, which has low noise, low vibration, dust resistance, long life and high reliability. Geared motor is equipped with counter moment support plate, axle mounted construction. It is directly connected to active roller of scale body, installation, debugging and maintenance extremely convenient.

※ Ring-shaped jointless belt, which can be selected according to process: parallel belt, baffle structure, skirt belt structure.

※ Unique belt deviation prevention device: adopt Schenck technology three roller structure, tension roller can be freely adjusted.

※ Batching system complete batching of each material in sequence according to set order and weight.

※ There are many structural forms and flexible combination methods.

※ It has high automation degree, wide variety of ingredients, batch 4-6 kinds of materials, has printing function and can print report at any time.

※ Occupy small area (above ground type, semi-underground type, underground type), low power consumption, simple to operate, easy maintenance, lower investment cost.

※ Batching speed is fast, all materials are batched simultaneously and continuously, measurement is accurate.

※ Reasonable design, beautiful appearance, smooth operation, energy saving and easy to control.

※ Formula can be changed at any time according to user needs. It has on-site or remote monitoring system functions and connected to a large screen to display current formula.

Structure Overview:

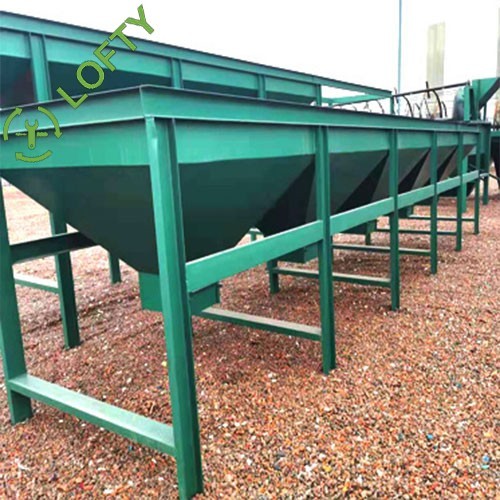

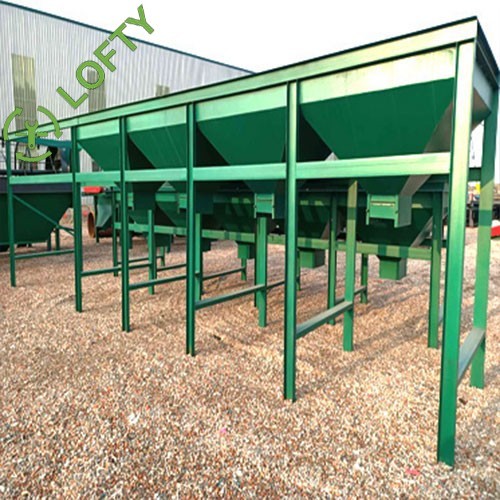

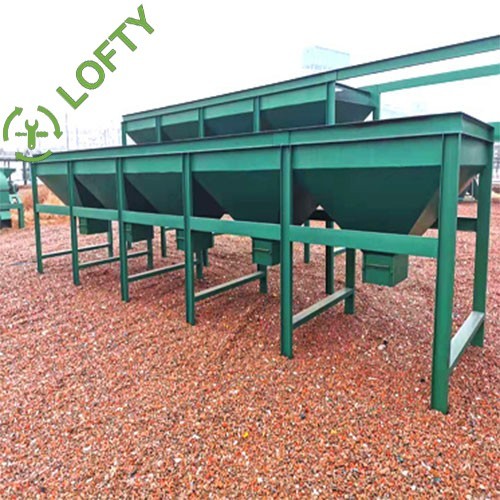

Organic fertilizer static automatic batching plant machine consist of aggregate storage hopper, Belt conveyor, metering system, weighing hopper, frame, electronic control system etc. Each storage hopper is equipped with a weighing bin, one bin with one weighing scale, continuous weighing and configuration. During configuration process, various materials are fully mixed, which reduce working intensity of the mixing mixer.

Working Principle:

Static automatic batch weighing system is composed of multiple weighing systems. Common control method is intermittent feeding and static measurement, that is, batching start, all feeding electric vibration machines begin to work, computer performs dynamic monitoring at the same time. When measured value of one weighing system reach feeding set value, feeding is stopped. After all weighing systems stop feeding, whole feeding process end, and this time is T1. In order to improve measurement accuracy, delay for a period of time T2 to make weighing system relatively static, then carry out static measurement on the weighing system. After measurement is completed, computer controls all discharging electric vibrators to discharge materials at the same time. Discharging process is similar to feeding process, computer still performs dynamic monitoring, and the discharging time is T3. In order to reduce error, a period of time T4 is also delayed after discharging, then static measurement is performed. So far one batching cycle of the batching system ends, next batching cycle can start, cycle will be: T=T1+T2+T3+T4.

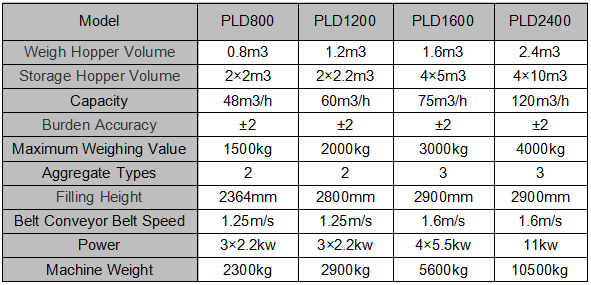

Technical Parameters:

Henan Lofty Fertilizer Machinery Co., Ltd. was established in 2001 year, located in Xingyang --- the hometown of machinery in Henan province, 15 kilometers from west of Zhengzhou.

Main products include: organic fertilizer, compound fertilizer, BB fertilizer, blended fertilizer complete production line with capacity 10,000--200,000 tons/year, non-drying extrusion production line, high-humidity materials drying and fermentation equipment such as chicken manure. We obtained 13 national utility model patent certificates, passed ISO9001 quality system certification and environmental management system certification; won honors such as "Contract-honoring and Promise-keeping Demonstration Enterprise", "AAA-Level Integrity Enterprise", "3.15 Product Quality Trustworthy Unit" and so on.

International Cooperation

Our company follows the concept of "service marketing" and cooperates with National Agricultural Technology Research Institute for many times, specializing in development of agricultural environmental protection technology and reducing waste for reuse. We have strong technical force, high-quality R&D, design and manufacturing teams. For a long time, we have been committed to the production of organic fertilizer production lines, compound fertilizer production lines and BB fertilizer production lines, providing customers with process design, equipment manufacturing, installation&commissioning etc one-stop services. Our equipment across the country and is exported to Southeast Asia, Africa, South America, European countries.

Henan Lofty Fertilizer Equipment Co., Ltd. has always been market-oriented, seeks development by innovation, strives for survival by quality, and takes perfect after-sales service. After more than 20 years of continuous development and innovation, it has gradually moved towards scientific, institutionalized, standardized management track. Warmly welcome people all over the world to visit, guide and negotiate business!

Staff Activity

Q: What is your company hot product?

A: Our main products include: organic fertilizer, compound fertilizer, BB fertilizer, blended fertilizer complete production line with capacity 10,000--200,000 tons/year, non-drying extrusion production line, high-humidity materials drying and fermentation equipment such as chicken manure.

Q: Are you a factory?

A: Yes,we are direct source factory,was established in 2001 year, located in Xingyang --- the hometown of machinery in Henan province, 15 kilometers from west of Zhengzhou.

Q: Whether can you provide customized product?

A: Yes, we focus on customer needs, commit to creating value for customers, provide personalized designs and products according to the actual situation.

Q: I am the new beginner of fertilizer equipment. How can i choose the most suitable machine?

A: Please let us know your raw materials type, water content, capacity (t / h) and final particle size, our engineer will design plan and make official quotation.

Q: How long is the production period of fertilizer equipment?

A: For single set fertilizer equipment, delivery time is 7 days; for complete production line, delivery time is 35 working days.

Q: How to guarantee your machine quality?

A: 100% new before leave our factory, we guarantee our machine 14 months after shipment date.

Q: Which type trade terms do you offer?

A: EXW/FOB/CFR/CIF/ are all accepted by us.

Q: Which type trade terms do you offer?

A: EXW/FOB/CFR/CIF/ are all accepted by us.

Q: What is your payment method?

A: 30% prepayment to confirm order after sign PI or SC,the rest 70% should be paid before delivery.We also accept L/C.

Q: Do you provide installation and operation training?

Yes.If you required,we can dispatch engineer to the site for guiding machine installation, At the same time train skilled workers how to operate the machine. Installer's salary is calculated separately.
