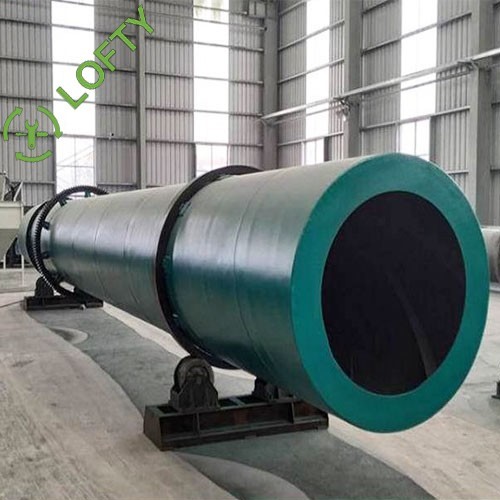

Rotary Cooler

Product Introduction:

Rotary drum cooler is a large-scale machine that dissipate heat and reduce moisture from dried shaped fertilizer granules. The hot granules dried from rotary dryer at temperature of 45-60℃ are sent to rotary cooler for cooling. Rotary kiln cooler is one of the key equipment in fertilizer industry. It is used to cool formed fertilizer granules. When temperature of granules decreases, water content decreases at the same time, and fertilizer granules strength increase accordingly.

Product Feature:

※ Beautiful appearance, simple operation, low energy consumption, longer life and convenient maintenance.

※ Less investment, quick results, good economic benefits, reliable performance, can be used for cooling powdery and granular materials.

※ Small power, no discharge of three wastes, reasonable process layout, advanced technology and low production cost.

※ Distribution and angle design of lifting plate is beautiful, performance is reliable, so utilization rate of wind energy is high, cooling is uniform, number of material cleaning is less.

Structure Overview:

Fertilizer cooler can be divided into four parts:

A. Bracket part: bracket part include front bracket and rear bracket, which are fixed on corresponding foundation and used to support cylinder for positioning and rotation. The front and rear brackets are all composed of bracket, riding wheel frame and a riding wheel. During installation, height and angle of equipment can be adjusted by adjusting two riding wheel distance on the front and rear brackets.

B. Transmission part: transmission part provide required power for normal operation of coolings compost. Its components include transmission frame, motor, triangular belt transmission mechanism, reducer and gear transmission mechanism etc., reducer and gear are connected by direct connection or coupling to transmit the drive according to load.

C. Cylinder: cylinder is working part of whole cooling machine. There are rolling belts for support and gear rings for transmission on the outside, lifting plates welded inside are distributed in rows, when the cooler is working, materials are continuously raised and thrown to form heat exchange to achieve purpose of cooling.

D. Seal head, seal tail and air duct: this part constitute the cold air circulation and dust removal system required for cooling machine to work. Seal between seal head and body is good, so that cold air can continuously reduce temperature of particle surface, achieve the purpose of uniformly cooling particles. When operator needs to enter inside of cylinder for operation, please enter from the tail when machine is stopped.

Working Principle:

Belt and pulley are driven by main motor, transmitted to drive shaft through reducer, and split gear installed on drive shaft meshes with large ring gear fixed on machine body to work in opposite directions. Material is fed from feed end and passes through cylinder inside. Under suction of induced draft fan (used in conjunction with machine), air flow inside the cylinder is accelerated, lifting plate installed on inner wall of cylinder continuously turns up material, so as to achieve purpose of uniform cooling, cooled material is discharged from discharge outlet. With continuous rotation of motor, material is continuously fed in order to achieve mass production. (Note this machine is used in conjunction with dryer).

Technical Parameters:

Henan Lofty Fertilizer Machinery Co., Ltd. was established in 2001 year, located in Xingyang --- the hometown of machinery in Henan province, 15 kilometers from west of Zhengzhou.

Main products include: organic fertilizer, compound fertilizer, BB fertilizer, blended fertilizer complete production line with capacity 10,000--200,000 tons/year, non-drying extrusion production line, high-humidity materials drying and fermentation equipment such as chicken manure. We obtained 13 national utility model patent certificates, passed ISO9001 quality system certification and environmental management system certification; won honors such as "Contract-honoring and Promise-keeping Demonstration Enterprise", "AAA-Level Integrity Enterprise", "3.15 Product Quality Trustworthy Unit" and so on.

International Cooperation

Our company follows the concept of "service marketing" and cooperates with National Agricultural Technology Research Institute for many times, specializing in development of agricultural environmental protection technology and reducing waste for reuse. We have strong technical force, high-quality R&D, design and manufacturing teams. For a long time, we have been committed to the production of organic fertilizer production lines, compound fertilizer production lines and BB fertilizer production lines, providing customers with process design, equipment manufacturing, installation&commissioning etc one-stop services. Our equipment across the country and is exported to Southeast Asia, Africa, South America, European countries.

Henan Lofty Fertilizer Equipment Co., Ltd. has always been market-oriented, seeks development by innovation, strives for survival by quality, and takes perfect after-sales service. After more than 20 years of continuous development and innovation, it has gradually moved towards scientific, institutionalized, standardized management track. Warmly welcome people all over the world to visit, guide and negotiate business!

Staff Activity

Q: What is your company hot product?

A: Our main products include: organic fertilizer, compound fertilizer, BB fertilizer, blended fertilizer complete production line with capacity 10,000--200,000 tons/year, non-drying extrusion production line, high-humidity materials drying and fermentation equipment such as chicken manure.

Q: Are you a factory?

A: Yes,we are direct source factory,was established in 2001 year, located in Xingyang --- the hometown of machinery in Henan province, 15 kilometers from west of Zhengzhou.

Q: Whether can you provide customized product?

A: Yes, we focus on customer needs, commit to creating value for customers, provide personalized designs and products according to the actual situation.

Q: I am the new beginner of fertilizer equipment. How can i choose the most suitable machine?

A: Please let us know your raw materials type, water content, capacity (t / h) and final particle size, our engineer will design plan and make official quotation.

Q: How long is the production period of fertilizer equipment?

A: For single set fertilizer equipment, delivery time is 7 days; for complete production line, delivery time is 35 working days.

Q: How to guarantee your machine quality?

A: 100% new before leave our factory, we guarantee our machine 14 months after shipment date.

Q: Which type trade terms do you offer?

A: EXW/FOB/CFR/CIF/ are all accepted by us.

Q: Which type trade terms do you offer?

A: EXW/FOB/CFR/CIF/ are all accepted by us.

Q: What is your payment method?

A: 30% prepayment to confirm order after sign PI or SC,the rest 70% should be paid before delivery.We also accept L/C.

Q: Do you provide installation and operation training?

Yes.If you required,we can dispatch engineer to the site for guiding machine installation, At the same time train skilled workers how to operate the machine. Installer's salary is calculated separately.
