Coating Machine

Product Introduction:

Complete equipment of organic fertilizer coating machine is composed of screw conveyor, mixing tank, oil pump, main machine etc., adopt powder coating or liquid coating process. It can effectively prevent agglomeration of organic fertilizer and compound fertilizer. Main machine is lined with polypropylene or acid-resistant stainless steel. According to technical requirements, this equipment has a special design in internal structure, and it is an effective special equipment for fertilizer coating.

Product Feature:

※ Beautiful appearance, simple operation, low energy consumption, long life and convenient maintenance.

※ Less investment, quick results, good economic benefits, reliable performance.

※ Small power, no discharge of three wastes, reasonable process layout, advanced technology and low production cost.

※ It can effectively prevent agglomeration of organic fertilizer and compound fertilizer.

Structure Overview:

Fertilizer coat can be divided into four parts:

A. Bracket part: bracket part include front bracket and rear bracket, which are fixed on corresponding foundation and used to support cylinder for positioning and rotation. The front and rear brackets are all composed of bracket, riding wheel frame and a riding wheel. During installation, height and angle of equipment can be adjusted by adjusting two riding wheel distance on the front and rear brackets.

B. Transmission part: transmission part provide required power for normal operation of coolings compost. Its components include transmission frame, motor, triangular belt transmission mechanism, reducer and gear transmission mechanism etc., reducer and gear are connected by direct connection or coupling to transmit the drive according to load.

C. Cylinder: cylinder is working part of whole coating machine. There are tape rolling for support and gear ring for transmission on outside, lifting plate are welded inside to guide material to flow slowly and make it evenly coated.

D. Coating part: use powder duster or film coating agent to coat the particles.

Working Principle:

Organic fertilizer coating machine is driven by main motor to drive belt and pulley, which is transmitted to drive shaft through reducer, the split gear installed on drive shaft is meshed with large ring gear fixed on machine body and works in opposite directions. Material is fed from feeding end and pass through inside of cylinder. The suction of induced draft fan (used together with machine) accelerate air flow inside cylinder.

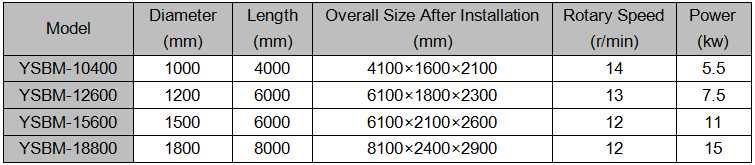

Technical Parameters:

Henan Lofty Fertilizer Machinery Co., Ltd. was established in 2001 year, located in Xingyang --- the hometown of machinery in Henan province, 15 kilometers from west of Zhengzhou.

Main products include: organic fertilizer, compound fertilizer, BB fertilizer, blended fertilizer complete production line with capacity 10,000--200,000 tons/year, non-drying extrusion production line, high-humidity materials drying and fermentation equipment such as chicken manure. We obtained 13 national utility model patent certificates, passed ISO9001 quality system certification and environmental management system certification; won honors such as "Contract-honoring and Promise-keeping Demonstration Enterprise", "AAA-Level Integrity Enterprise", "3.15 Product Quality Trustworthy Unit" and so on.

International Cooperation

Our company follows the concept of "service marketing" and cooperates with National Agricultural Technology Research Institute for many times, specializing in development of agricultural environmental protection technology and reducing waste for reuse. We have strong technical force, high-quality R&D, design and manufacturing teams. For a long time, we have been committed to the production of organic fertilizer production lines, compound fertilizer production lines and BB fertilizer production lines, providing customers with process design, equipment manufacturing, installation&commissioning etc one-stop services. Our equipment across the country and is exported to Southeast Asia, Africa, South America, European countries.

Henan Lofty Fertilizer Equipment Co., Ltd. has always been market-oriented, seeks development by innovation, strives for survival by quality, and takes perfect after-sales service. After more than 20 years of continuous development and innovation, it has gradually moved towards scientific, institutionalized, standardized management track. Warmly welcome people all over the world to visit, guide and negotiate business!

Staff Activity

Q: What is your company hot product?

A: Our main products include: organic fertilizer, compound fertilizer, BB fertilizer, blended fertilizer complete production line with capacity 10,000--200,000 tons/year, non-drying extrusion production line, high-humidity materials drying and fermentation equipment such as chicken manure.

Q: Are you a factory?

A: Yes,we are direct source factory,was established in 2001 year, located in Xingyang --- the hometown of machinery in Henan province, 15 kilometers from west of Zhengzhou.

Q: Whether can you provide customized product?

A: Yes, we focus on customer needs, commit to creating value for customers, provide personalized designs and products according to the actual situation.

Q: I am the new beginner of fertilizer equipment. How can i choose the most suitable machine?

A: Please let us know your raw materials type, water content, capacity (t / h) and final particle size, our engineer will design plan and make official quotation.

Q: How long is the production period of fertilizer equipment?

A: For single set fertilizer equipment, delivery time is 7 days; for complete production line, delivery time is 35 working days.

Q: How to guarantee your machine quality?

A: 100% new before leave our factory, we guarantee our machine 14 months after shipment date.

Q: Which type trade terms do you offer?

A: EXW/FOB/CFR/CIF/ are all accepted by us.

Q: Which type trade terms do you offer?

A: EXW/FOB/CFR/CIF/ are all accepted by us.

Q: What is your payment method?

A: 30% prepayment to confirm order after sign PI or SC,the rest 70% should be paid before delivery.We also accept L/C.

Q: Do you provide installation and operation training?

Yes.If you required,we can dispatch engineer to the site for guiding machine installation, At the same time train skilled workers how to operate the machine. Installer's salary is calculated separately.
