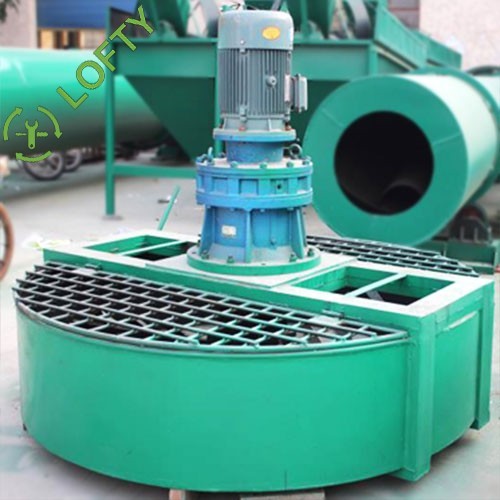

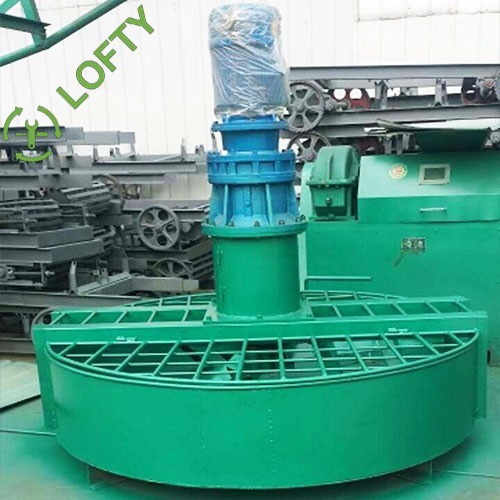

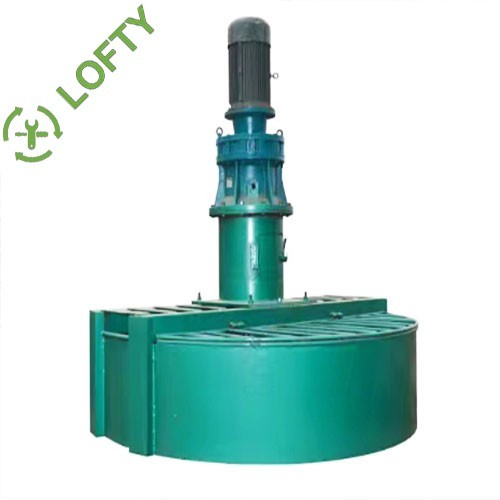

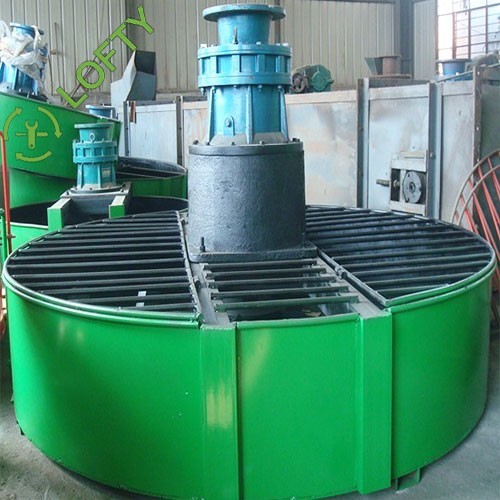

Pan Mixer

Product Introduction:

Pan mixer is mainly used for mixing all raw materials in fertilizer production, also be used in chemical metallurgy, mining, building materials and other industries. The mixer stirs raw material evenly by turning and connected to conveying equipment. Disc mixer blends all ingredients together to achieve an overall fully mixed state.

Product Feature:

※ Lined with polypropylene plate or stainless steel plate, so not easy to stick and wear-resistant.

※ Cycloidal pin gear reducer is adopted. Stable rotation and low noise.

※ Compact structure, convenient operation, uniform mixing, convenient unloading and conveying.

※ Pan type mixer has a long service life, save energy and electricity.

※ Small size, fast stirring speed.

※ Work continuously, especially suitable for vast number of urban and rural construction projects.

※ High stirring efficiency and small footprint. Spiral blades are made of high wear-resistant special alloy.

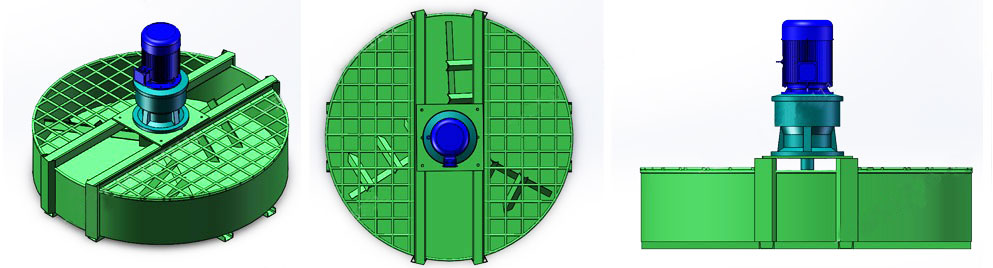

Structure Overview:

Pan mixture can be divided into three parts:

1.Frame part: all the working bodies of mixer are installed and fixed on frame. The frame of machine is welded by high-quality carbon steel plate and channel steel, has passed strict product certification and specific process requirements.

2. Transmission connection part: this machine use a cycloidal pinwheel reducer to drive main shaft to rotate, working part of the machine use nylon pins to drive phase teeth of transmission connector and transmission, convenient for assembly and maintenance.

3. Stirring working part: transmit from transmission wheel to main shaft through pin coupling. Turn material evenly in mixing chamber so that the material can be fully mixed, thereby greatly reduce residual amount of material.

Working Principle:

Disc mixer consist of stirring disc,discharge port, stirring arm,frame, gearbox and transmission mechanism. There is a cylinder in the center of stirring disc, a cylinder cover on the cylinder, stirring arm is fixedly connected to cylinder cover, stirring shaft connect to one end of cylinder cover and pass the cylinder, stirring shaft drive the cylinder cover to rotate, thereby driving stirring arm to rotate. Te transmission mechanism driving stirring shaft to rotate is composed of 4 grade transmission mechanism.

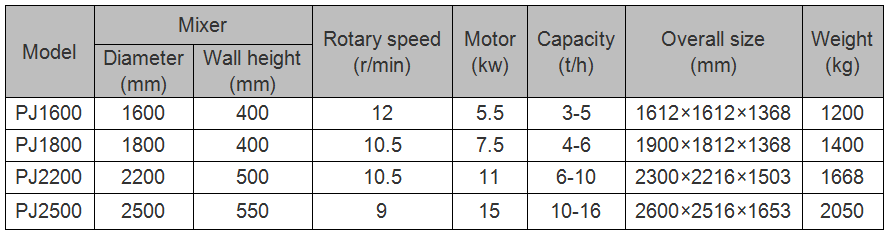

Technical Parameters:

Henan Lofty Fertilizer Machinery Co., Ltd. was established in 2001 year, located in Xingyang --- the hometown of machinery in Henan province, 15 kilometers from west of Zhengzhou.

Main products include: organic fertilizer, compound fertilizer, BB fertilizer, blended fertilizer complete production line with capacity 10,000--200,000 tons/year, non-drying extrusion production line, high-humidity materials drying and fermentation equipment such as chicken manure. We obtained 13 national utility model patent certificates, passed ISO9001 quality system certification and environmental management system certification; won honors such as "Contract-honoring and Promise-keeping Demonstration Enterprise", "AAA-Level Integrity Enterprise", "3.15 Product Quality Trustworthy Unit" and so on.

International Cooperation

Our company follows the concept of "service marketing" and cooperates with National Agricultural Technology Research Institute for many times, specializing in development of agricultural environmental protection technology and reducing waste for reuse. We have strong technical force, high-quality R&D, design and manufacturing teams. For a long time, we have been committed to the production of organic fertilizer production lines, compound fertilizer production lines and BB fertilizer production lines, providing customers with process design, equipment manufacturing, installation&commissioning etc one-stop services. Our equipment across the country and is exported to Southeast Asia, Africa, South America, European countries.

Henan Lofty Fertilizer Equipment Co., Ltd. has always been market-oriented, seeks development by innovation, strives for survival by quality, and takes perfect after-sales service. After more than 20 years of continuous development and innovation, it has gradually moved towards scientific, institutionalized, standardized management track. Warmly welcome people all over the world to visit, guide and negotiate business!

Staff Activity

Q: What is your company hot product?

A: Our main products include: organic fertilizer, compound fertilizer, BB fertilizer, blended fertilizer complete production line with capacity 10,000--200,000 tons/year, non-drying extrusion production line, high-humidity materials drying and fermentation equipment such as chicken manure.

Q: Are you a factory?

A: Yes,we are direct source factory,was established in 2001 year, located in Xingyang --- the hometown of machinery in Henan province, 15 kilometers from west of Zhengzhou.

Q: Whether can you provide customized product?

A: Yes, we focus on customer needs, commit to creating value for customers, provide personalized designs and products according to the actual situation.

Q: I am the new beginner of fertilizer equipment. How can i choose the most suitable machine?

A: Please let us know your raw materials type, water content, capacity (t / h) and final particle size, our engineer will design plan and make official quotation.

Q: How long is the production period of fertilizer equipment?

A: For single set fertilizer equipment, delivery time is 7 days; for complete production line, delivery time is 35 working days.

Q: How to guarantee your machine quality?

A: 100% new before leave our factory, we guarantee our machine 14 months after shipment date.

Q: Which type trade terms do you offer?

A: EXW/FOB/CFR/CIF/ are all accepted by us.

Q: Which type trade terms do you offer?

A: EXW/FOB/CFR/CIF/ are all accepted by us.

Q: What is your payment method?

A: 30% prepayment to confirm order after sign PI or SC,the rest 70% should be paid before delivery.We also accept L/C.

Q: Do you provide installation and operation training?

Yes.If you required,we can dispatch engineer to the site for guiding machine installation, At the same time train skilled workers how to operate the machine. Installer's salary is calculated separately.
