Automatic Packing Machine

Product Introduction:

Automatic packing machine is specially designed for quantitative packaging, divided into double-hopper packaging machine and single-hopper packaging machine. It is suitable for automatic quantitative packaging of powdery or granular materials in flour, starch, feed, food, chemical industry, organic fertilizer and other industries.

Applicable packaging materials: woven bag, sack, paper bag, cloth bag and plastic bag etc.

Material: SS304 for parts in contact with material, which has high corrosion resistance.

Widely used in feed, compound fertilizer, BB fertilizer, grain, seed, chemical and other industries.

Applicable materials: granular materials, powder materials, mixed materials.

Product Feature:

※ Adopt integrated structure, novel appearance. It can be made into fixed or mobile type according to customer needs.

※ Specially designed feeding and hopper metering, bagging and unloading at the same time, does not affect unloading metering.

※ Adaptive software, automatic set control parameters and automatic correct drop height.

※ High precision: wide quantitative range, combined with sewing machine have a lifting table, one machine with multiple functions and high efficiency.

※ Imported sensors and pneumatic actuators are used, reliable and easy to maintain.

※ Good integrity: small footprint, flexible and convenient installation.

※ Speed adjustable: feeding method of powder material is spiral feeding. Fast and slow feeding are realized through controller, feeding speed can be set arbitrarily.

※ Environmental protection operation: closed internal circulation system to prevent dust from flying, improve working environment and protect health of employees.

Structure Overview:

Automatic quantitative packaging system is composed of mechanical device and microcomputer control system. Mechanical device include feeding, scale body, bag sewing, conveying, pneumatic system and other parts; control system include weighing sensor, intelligent weighing instrument and PLC program control.

Working Principle:

After operator of automatic quantitative packaging equipment put packaging bag into discharge port, he flip clamping switch. After receiving bagging signal, control system drive air cylinder. Bag holder clamp packaging bag and at the same time start feeding mechanism to transfer materials into packaging scale. The feeding mechanism is belt. Material is fed by fast feeding, when target weight of fast feeding is reached, low-speed feeding program is entered. It is controlled by instrument for slow feeding. When required target weight is reached, slow feeding is stopped, discharge valve close, clamper open automatically, packaging bag automatically falls onto conveyor. The conveyor transport packaging bag backward for seam and output, completing a bagging process. This operation can be carried out continuously, requiring 2 operators and 1 transporter.

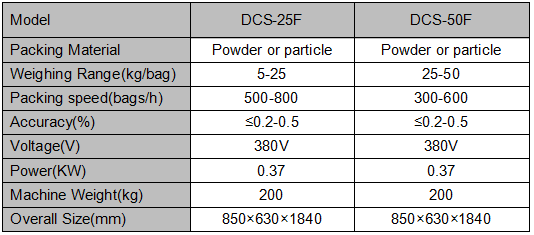

Technical Parameters:

Henan Lofty Fertilizer Machinery Co., Ltd. was established in 2001 year, located in Xingyang --- the hometown of machinery in Henan province, 15 kilometers from west of Zhengzhou.

Main products include: organic fertilizer, compound fertilizer, BB fertilizer, blended fertilizer complete production line with capacity 10,000--200,000 tons/year, non-drying extrusion production line, high-humidity materials drying and fermentation equipment such as chicken manure. We obtained 13 national utility model patent certificates, passed ISO9001 quality system certification and environmental management system certification; won honors such as "Contract-honoring and Promise-keeping Demonstration Enterprise", "AAA-Level Integrity Enterprise", "3.15 Product Quality Trustworthy Unit" and so on.

International Cooperation

Our company follows the concept of "service marketing" and cooperates with National Agricultural Technology Research Institute for many times, specializing in development of agricultural environmental protection technology and reducing waste for reuse. We have strong technical force, high-quality R&D, design and manufacturing teams. For a long time, we have been committed to the production of organic fertilizer production lines, compound fertilizer production lines and BB fertilizer production lines, providing customers with process design, equipment manufacturing, installation&commissioning etc one-stop services. Our equipment across the country and is exported to Southeast Asia, Africa, South America, European countries.

Henan Lofty Fertilizer Equipment Co., Ltd. has always been market-oriented, seeks development by innovation, strives for survival by quality, and takes perfect after-sales service. After more than 20 years of continuous development and innovation, it has gradually moved towards scientific, institutionalized, standardized management track. Warmly welcome people all over the world to visit, guide and negotiate business!

Staff Activity

Q: What is your company hot product?

A: Our main products include: organic fertilizer, compound fertilizer, BB fertilizer, blended fertilizer complete production line with capacity 10,000--200,000 tons/year, non-drying extrusion production line, high-humidity materials drying and fermentation equipment such as chicken manure.

Q: Are you a factory?

A: Yes,we are direct source factory,was established in 2001 year, located in Xingyang --- the hometown of machinery in Henan province, 15 kilometers from west of Zhengzhou.

Q: Whether can you provide customized product?

A: Yes, we focus on customer needs, commit to creating value for customers, provide personalized designs and products according to the actual situation.

Q: I am the new beginner of fertilizer equipment. How can i choose the most suitable machine?

A: Please let us know your raw materials type, water content, capacity (t / h) and final particle size, our engineer will design plan and make official quotation.

Q: How long is the production period of fertilizer equipment?

A: For single set fertilizer equipment, delivery time is 7 days; for complete production line, delivery time is 35 working days.

Q: How to guarantee your machine quality?

A: 100% new before leave our factory, we guarantee our machine 14 months after shipment date.

Q: Which type trade terms do you offer?

A: EXW/FOB/CFR/CIF/ are all accepted by us.

Q: Which type trade terms do you offer?

A: EXW/FOB/CFR/CIF/ are all accepted by us.

Q: What is your payment method?

A: 30% prepayment to confirm order after sign PI or SC,the rest 70% should be paid before delivery.We also accept L/C.

Q: Do you provide installation and operation training?

Yes.If you required,we can dispatch engineer to the site for guiding machine installation, At the same time train skilled workers how to operate the machine. Installer's salary is calculated separately.
