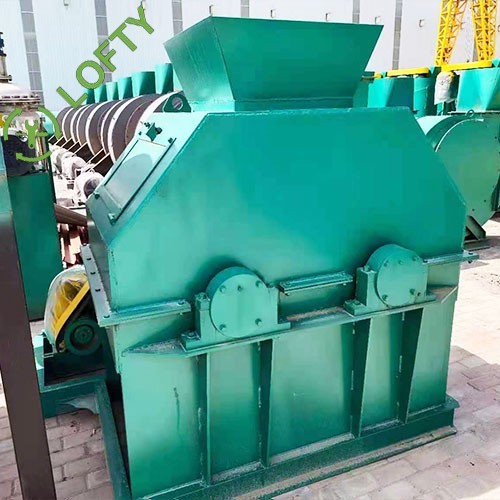

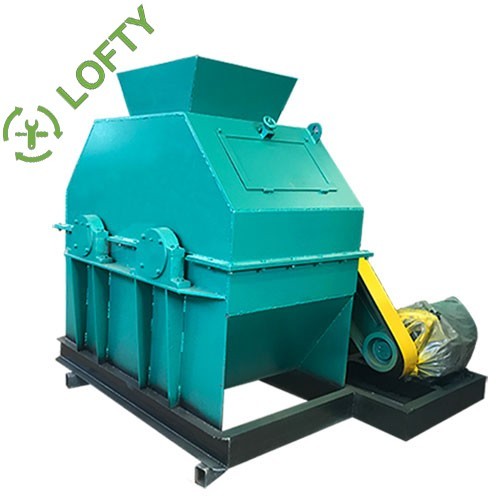

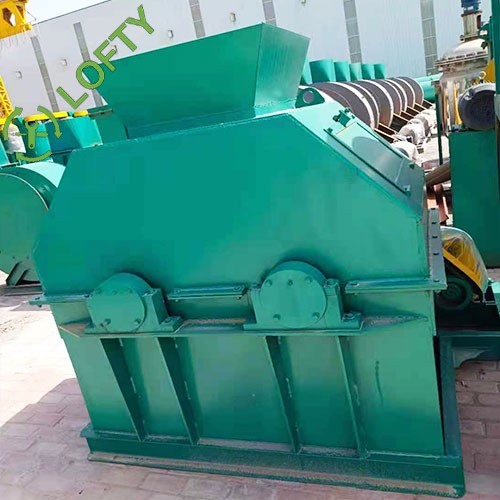

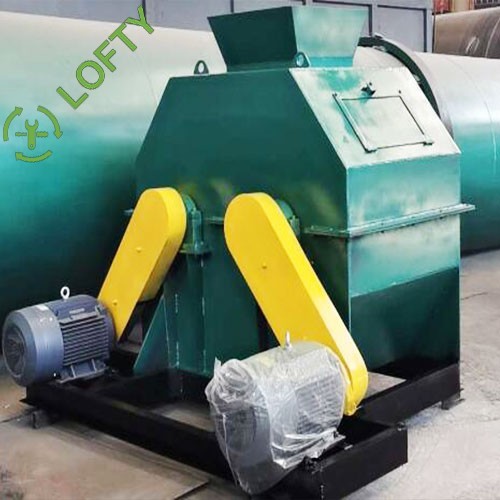

Double Shaft Crusher

Product Introduction:

Double shaft crusher, also known as double-shaft chain mill, is suitable for crushing lumps in the production of compound fertilizers or organic fertilizers. It is also widely used in chemical, building materials, mining and other industries. High-strength tungsten carbide chain plate, reasonable design of inlet and outlet, crush materials evenly, not easy to stick on machine wall, easy to clean.

Product Feature:

※  Chain mill crusher could crush the material evenly, fully disperse it, difficult to stick on machine wall, easy to clean.

※  Suitable for crushing of organic fertilizer and inorganic fertilizer after batching before granulation, or continuous large-scale crushing of agglomerated materials.

※  High-strength hard alloy chain plate with synchronous speed is adopted, design of inlet and outlet is reasonable.

Structure Overview:

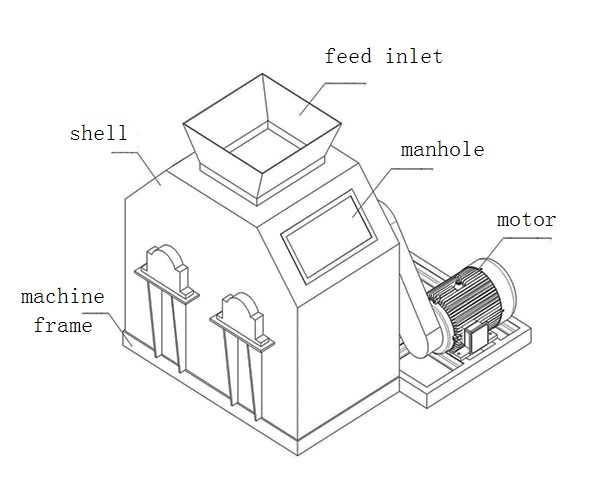

Chain crusher consist of feed inlet, machine body, discharge outlet, rotor (including bearing), transmission device and shock absorber.

A. Frame is welded with thick channel steel and steel plate.

B. Crushing mechanism adopt double crushing shafts and is equipped with wear-resistant manganese steel chains.

C. During crushing process, high-strength and hard alloy chain plates with synchronous speed are used for continuous large-capacity material crushing.

Working Principle:

According to installation form, two shaft chain mill crusher is divided into two structural forms: vertical chain crusher and horizontal chain crusher. The vertical chain crusher has a single rotor, horizontal chain crusher has double rotor. Main working part of chain crusher is the rotor with steel chain, one end of the chain is connected to rotor, the other end of chain is equipped with chain head made of wear-resistant steel. The chain crusher belong to impact crusher, which crush material block by impact of high-speed rotating chain. Chain crusher is double-rotor structure, each rotor shaft has its own drive motor, peripheral speed of chain head is 28~78m/s. In order to prevent friction between the sticky material and machine steel plate, body inner is lined with rubber plate, there are quick-opening inspection doors on both sides of machine body. Machine body and transmission device are installed on base made of section steel, lower part of the base is equipped with shock absorber and connected with the foundation.

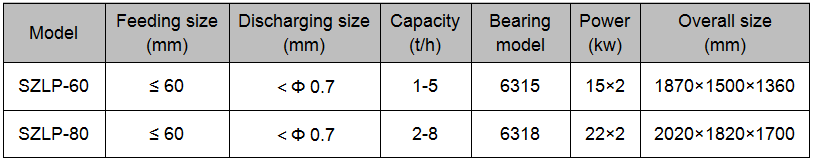

Technical Parameters:

Henan Lofty Fertilizer Machinery Co., Ltd. was established in 2001 year, located in Xingyang --- the hometown of machinery in Henan province, 15 kilometers from west of Zhengzhou.

Main products include: organic fertilizer, compound fertilizer, BB fertilizer, blended fertilizer complete production line with capacity 10,000--200,000 tons/year, non-drying extrusion production line, high-humidity materials drying and fermentation equipment such as chicken manure. We obtained 13 national utility model patent certificates, passed ISO9001 quality system certification and environmental management system certification; won honors such as "Contract-honoring and Promise-keeping Demonstration Enterprise", "AAA-Level Integrity Enterprise", "3.15 Product Quality Trustworthy Unit" and so on.

International Cooperation

Our company follows the concept of "service marketing" and cooperates with National Agricultural Technology Research Institute for many times, specializing in development of agricultural environmental protection technology and reducing waste for reuse. We have strong technical force, high-quality R&D, design and manufacturing teams. For a long time, we have been committed to the production of organic fertilizer production lines, compound fertilizer production lines and BB fertilizer production lines, providing customers with process design, equipment manufacturing, installation&commissioning etc one-stop services. Our equipment across the country and is exported to Southeast Asia, Africa, South America, European countries.

Henan Lofty Fertilizer Equipment Co., Ltd. has always been market-oriented, seeks development by innovation, strives for survival by quality, and takes perfect after-sales service. After more than 20 years of continuous development and innovation, it has gradually moved towards scientific, institutionalized, standardized management track. Warmly welcome people all over the world to visit, guide and negotiate business!

Staff Activity

Q: What is your company hot product?

A: Our main products include: organic fertilizer, compound fertilizer, BB fertilizer, blended fertilizer complete production line with capacity 10,000--200,000 tons/year, non-drying extrusion production line, high-humidity materials drying and fermentation equipment such as chicken manure.

Q: Are you a factory?

A: Yes,we are direct source factory,was established in 2001 year, located in Xingyang --- the hometown of machinery in Henan province, 15 kilometers from west of Zhengzhou.

Q: Whether can you provide customized product?

A: Yes, we focus on customer needs, commit to creating value for customers, provide personalized designs and products according to the actual situation.

Q: I am the new beginner of fertilizer equipment. How can i choose the most suitable machine?

A: Please let us know your raw materials type, water content, capacity (t / h) and final particle size, our engineer will design plan and make official quotation.

Q: How long is the production period of fertilizer equipment?

A: For single set fertilizer equipment, delivery time is 7 days; for complete production line, delivery time is 35 working days.

Q: How to guarantee your machine quality?

A: 100% new before leave our factory, we guarantee our machine 14 months after shipment date.

Q: Which type trade terms do you offer?

A: EXW/FOB/CFR/CIF/ are all accepted by us.

Q: Which type trade terms do you offer?

A: EXW/FOB/CFR/CIF/ are all accepted by us.

Q: What is your payment method?

A: 30% prepayment to confirm order after sign PI or SC,the rest 70% should be paid before delivery.We also accept L/C.

Q: Do you provide installation and operation training?

Yes.If you required,we can dispatch engineer to the site for guiding machine installation, At the same time train skilled workers how to operate the machine. Installer's salary is calculated separately.
