Double Roller Granulator

Product Introduction:

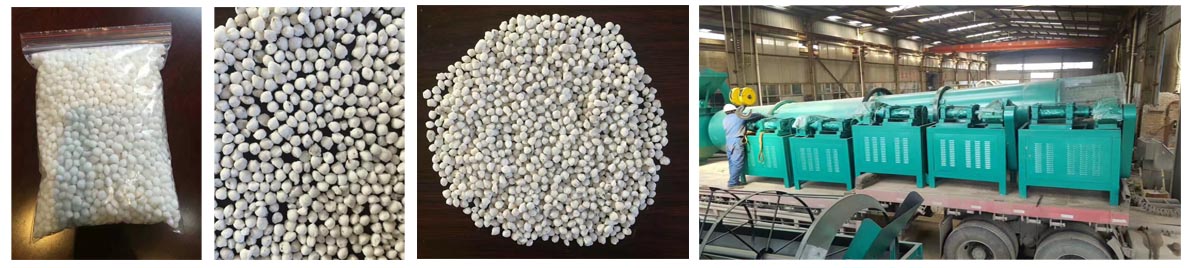

Double Roller Fertilizer Granulator Machine is a non-drying granulator. The extruded shapes include: pillow, hemispherical, rod, pill, walnut, oblate ball and square bar. It can be used for various types of granulation including organic fertilizer, compound fertilizer, inorganic fertilizer, biological fertilizer, magnetic fertilizer and other raw materials.

(1) The organic fertilizer granulator can produce various types of granules (including organic fertilizers, inorganic fertilizers, biological fertilizers, magnetic fertilizers, compound fertilizers, etc.) with a size of 2.5 ~ 40mm, granulation strength is good.

(2) After the material enters the granulator, it is extruded by the pair of rollers then demoulded to form pellets.

Product Feature:

※ No need drying process, granulation at room temperature, one-time molding, small investment, quick effect, good economic benefits.

※ Small power, reliable operation, no discharge of three wastes, stable operation, convenient maintenance, reasonable process layout, excellent technology and low production cost.

※ Wide range of raw materials, can produce 2.5-40mm granules, good granule strength, can be used for granulation of various raw materials such as compound fertilizer, medicine, chemical industry, feed, coal, metallurgy, etc., can also produce various concentrations and types (including organic fertilizer, inorganic fertilizer, biological fertilizer, magnetic fertilizer, etc.) compound fertilizer.

※ Especially the granulation of compound fertilizers based on rare earth, ammonium sulfate and ammonium sulfate is a promotion project for national environmental protection applicable technologies.

※ Beautiful shape, simple operation, low taste, long life and high granulation rate.

Structure Overview:

Oganic fertilizer granulator machine is divided into four parts:

1. Rack part: the main body of the machine is all installed and fixed on the rack. The frame of the machine is welded by carbon steel plate and channel steel, structure of the whole machine is stable and durable.

2. Transmission connection part: this machine is driven by the motor to drive the pulley, V-belt, and reducer to make the machine head work. There are also sprockets and chains to form a transmission chain and transmit it to the crushing and separating working part. Among them, the reducer and working part of machine head are driven by nylon pin couplings.

3. Working part of machine head:the transmission wheel transmits power to the driving roller shaft through nylon pin coupling, and the synchronous operation of rollers is guaranteed by a pair of open gears. There are specific bearings on both sides of the driving and passive shafts and eccentric sleeve parts which are used for adjust roller skin spacing, installed on the frame.

4. Crushing and separating working part: after the material is squeezed by the rollers, it flows into crushing chamber at the lower side. With the rotation of double-axis mace, the pellets and returned materials can be separated.

Working Principle:

This series of double roller granulator adopts principle of physical extrusion to process powder material into particles of required shape.

The belt and pulley are driven by motor, transmitted to driving shaft through the reducer, and synchronized with the driven shaft through split gear, work in opposite directions. The material is fed from feed hopper, extruded by the pair of rollers, demoulding and made into pellets, then falls into crushing chamber. At the same time, a pair of chains driven by transmission shaft drive the rotation of two maces, the extrusions pellets which adhered to be separated with each other,finally the finished granules and powder are sieved from lower sieve, the granular and returned powder are separated through the subsequent drum screen, the returned material is mixed with new material by Belt conveyor, and then granulated again. With the continuous rotation of motor, material is continuously fed in, realizing mass production.

Technical Parameters:

Henan Lofty Fertilizer Machinery Co., Ltd. was established in 2001 year, located in Xingyang --- the hometown of machinery in Henan province, 15 kilometers from west of Zhengzhou.

Main products include: organic fertilizer, compound fertilizer, BB fertilizer, blended fertilizer complete production line with capacity 10,000--200,000 tons/year, non-drying extrusion production line, high-humidity materials drying and fermentation equipment such as chicken manure. We obtained 13 national utility model patent certificates, passed ISO9001 quality system certification and environmental management system certification; won honors such as "Contract-honoring and Promise-keeping Demonstration Enterprise", "AAA-Level Integrity Enterprise", "3.15 Product Quality Trustworthy Unit" and so on.

International Cooperation

Our company follows the concept of "service marketing" and cooperates with National Agricultural Technology Research Institute for many times, specializing in development of agricultural environmental protection technology and reducing waste for reuse. We have strong technical force, high-quality R&D, design and manufacturing teams. For a long time, we have been committed to the production of organic fertilizer production lines, compound fertilizer production lines and BB fertilizer production lines, providing customers with process design, equipment manufacturing, installation&commissioning etc one-stop services. Our equipment across the country and is exported to Southeast Asia, Africa, South America, European countries.

Henan Lofty Fertilizer Equipment Co., Ltd. has always been market-oriented, seeks development by innovation, strives for survival by quality, and takes perfect after-sales service. After more than 20 years of continuous development and innovation, it has gradually moved towards scientific, institutionalized, standardized management track. Warmly welcome people all over the world to visit, guide and negotiate business!

Staff Activity

Q: What is your company hot product?

A: Our main products include: organic fertilizer, compound fertilizer, BB fertilizer, blended fertilizer complete production line with capacity 10,000--200,000 tons/year, non-drying extrusion production line, high-humidity materials drying and fermentation equipment such as chicken manure.

Q: Are you a factory?

A: Yes,we are direct source factory,was established in 2001 year, located in Xingyang --- the hometown of machinery in Henan province, 15 kilometers from west of Zhengzhou.

Q: Whether can you provide customized product?

A: Yes, we focus on customer needs, commit to creating value for customers, provide personalized designs and products according to the actual situation.

Q: I am the new beginner of fertilizer equipment. How can i choose the most suitable machine?

A: Please let us know your raw materials type, water content, capacity (t / h) and final particle size, our engineer will design plan and make official quotation.

Q: How long is the production period of fertilizer equipment?

A: For single set fertilizer equipment, delivery time is 7 days; for complete production line, delivery time is 35 working days.

Q: How to guarantee your machine quality?

A: 100% new before leave our factory, we guarantee our machine 14 months after shipment date.

Q: Which type trade terms do you offer?

A: EXW/FOB/CFR/CIF/ are all accepted by us.

Q: Which type trade terms do you offer?

A: EXW/FOB/CFR/CIF/ are all accepted by us.

Q: What is your payment method?

A: 30% prepayment to confirm order after sign PI or SC,the rest 70% should be paid before delivery.We also accept L/C.

Q: Do you provide installation and operation training?

Yes.If you required,we can dispatch engineer to the site for guiding machine installation, At the same time train skilled workers how to operate the machine. Installer's salary is calculated separately.
