Big Inclined Belt Conveyor

Product Introduction:

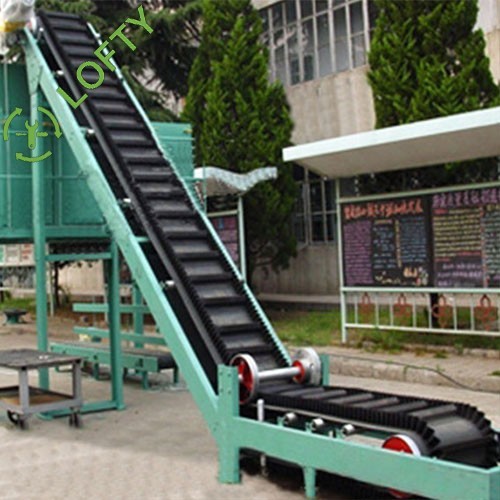

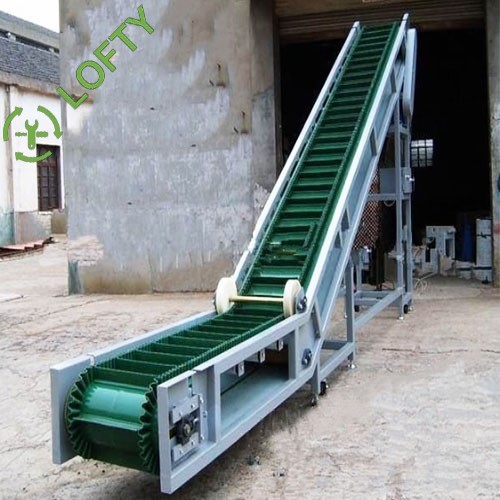

Big inclined Belt conveyor is also called wave sidewall conveyor, which is a kind of conveyor. Incline conveyor has advantages of simple structure, reliable operation, convenient maintenance of general-purpose belt conveyor.It also has characteristics of large inclination (90° vertical) transportation, compact structure, less land occupation, so it is an ideal equipment for large inclination (or vertical) transportation.

Sidewall belt is composed of base belt, sidewall and partition. Appearance of base belt is same as common conveyor belt, but lateral stiffness is greater, sidewall is wavy, partition can be divided into T-type, C-type and TC-type according to different sections.

T type: suitable for occasion where inclination angle β≤40°.

Type C: suitable for occasion where inclination angle β>40° and material fluidity is good.

TC type: suitable for occasion where inclination angle β>40°, material is relatively viscous, and viscosity is relatively high.

Troughed belt conveyor has a wide range of applications, mainly in fertilizer, coal mine, subway, grain, metallurgy, chemical industry, cement and other fields.

Product Feature:

※ This machine adopt conveyor belt with corrugated sidewalls and transverse partitions, advanced technology, novel structure, optional range of inclination (0°-90°), large conveying capacity, small footprint, saving equipment investment and civil construction costs , achieved good comprehensive economic benefits.

※ Structure is simple. All main components can be used in common belt conveyor, which brings convenience to use and maintenance.

※ Reliable operation. There is no phenomenon of stuck chain, floating chain and broken chain that occur in scraper conveyor, and phenomenon of slipping and bucket drop that occur in bucket elevator. Its reliability is almost equal to common belt conveyor.

※ Smooth operation, low noise, long service life and more optional models.

※ Since there is no excavation resistance during loading and internal/external friction resistance of materials during operation, energy consumption is small.

※ Horizontal conveying sections of any length can be set at head or tail of vertical sidewall machine, which is convenient for connection with other equipment.

Structure Overview:

Trough belt conveyor is mainly composed of corrugated sidewall conveyor belt, driving device, driving roller, reversing roller, pressure pulley, idler roller, vertical roller, beating wheel cleaning device, tensioning device and other parts.

Working Principle:

90 degree large-inclination belt conveyor is to glue freely expandable rubber corrugated vertical "skirt" on both sides of flat rubber conveyor belt, and certain strength and elasticity transverse partition is glued between the skirts to form box-shaped bucket, so that material is continuously conveyed in the bucket.

Technical Parameters:

Henan Lofty Fertilizer Machinery Co., Ltd. was established in 2001 year, located in Xingyang --- the hometown of machinery in Henan province, 15 kilometers from west of Zhengzhou.

Main products include: organic fertilizer, compound fertilizer, BB fertilizer, blended fertilizer complete production line with capacity 10,000--200,000 tons/year, non-drying extrusion production line, high-humidity materials drying and fermentation equipment such as chicken manure. We obtained 13 national utility model patent certificates, passed ISO9001 quality system certification and environmental management system certification; won honors such as "Contract-honoring and Promise-keeping Demonstration Enterprise", "AAA-Level Integrity Enterprise", "3.15 Product Quality Trustworthy Unit" and so on.

International Cooperation

Our company follows the concept of "service marketing" and cooperates with National Agricultural Technology Research Institute for many times, specializing in development of agricultural environmental protection technology and reducing waste for reuse. We have strong technical force, high-quality R&D, design and manufacturing teams. For a long time, we have been committed to the production of organic fertilizer production lines, compound fertilizer production lines and BB fertilizer production lines, providing customers with process design, equipment manufacturing, installation&commissioning etc one-stop services. Our equipment across the country and is exported to Southeast Asia, Africa, South America, European countries.

Henan Lofty Fertilizer Equipment Co., Ltd. has always been market-oriented, seeks development by innovation, strives for survival by quality, and takes perfect after-sales service. After more than 20 years of continuous development and innovation, it has gradually moved towards scientific, institutionalized, standardized management track. Warmly welcome people all over the world to visit, guide and negotiate business!

Staff Activity

Q: What is your company hot product?

A: Our main products include: organic fertilizer, compound fertilizer, BB fertilizer, blended fertilizer complete production line with capacity 10,000--200,000 tons/year, non-drying extrusion production line, high-humidity materials drying and fermentation equipment such as chicken manure.

Q: Are you a factory?

A: Yes,we are direct source factory,was established in 2001 year, located in Xingyang --- the hometown of machinery in Henan province, 15 kilometers from west of Zhengzhou.

Q: Whether can you provide customized product?

A: Yes, we focus on customer needs, commit to creating value for customers, provide personalized designs and products according to the actual situation.

Q: I am the new beginner of fertilizer equipment. How can i choose the most suitable machine?

A: Please let us know your raw materials type, water content, capacity (t / h) and final particle size, our engineer will design plan and make official quotation.

Q: How long is the production period of fertilizer equipment?

A: For single set fertilizer equipment, delivery time is 7 days; for complete production line, delivery time is 35 working days.

Q: How to guarantee your machine quality?

A: 100% new before leave our factory, we guarantee our machine 14 months after shipment date.

Q: Which type trade terms do you offer?

A: EXW/FOB/CFR/CIF/ are all accepted by us.

Q: Which type trade terms do you offer?

A: EXW/FOB/CFR/CIF/ are all accepted by us.

Q: What is your payment method?

A: 30% prepayment to confirm order after sign PI or SC,the rest 70% should be paid before delivery.We also accept L/C.

Q: Do you provide installation and operation training?

Yes.If you required,we can dispatch engineer to the site for guiding machine installation, At the same time train skilled workers how to operate the machine. Installer's salary is calculated separately.
